Kawai mobile Concert Piano



Roselyn invested early on in the piece in 88 keys of glory from Kawai. A weighted keyboard with a DI for maximum sound quality through front of house.



Relying on the heritage of Kawai's highly acclaimed MP9000 and MP95000 stage pianos, this beast boasts high-quality instrument sounds. Including Kawai's famous Concert Grand piano sound. It incorporates the Advanced Hammer Action IV with AR technology, featuring a graded-hammer action, the AHA IV delivers uncompromising feel in a portable keyboard action.


It also features many of the powerful controller functions , including 4-zone control, real-time control knobs. A back light LCD, MIDI I/O, USB connectivity, reverb and effect types add to the power and convenience. Combined with the damper pedal. The Kawai is out to impress. I bought the keyboard of Mark Vanilau - who plays keys for Dave Dobbin. So it has to be good!





L1™ Model II Personalized Amplification System™

BOSE - Personalized Amplification System



Extensive research went into my Personal Amplifier purchase. At the end of the day the extra investment meant that I could have the best of both worlds.

1. A PA system that was easy to use and maneuver and 2. The best on the market for acoustic 1 musician sound in my opinion. The system is in the same world but on a totally different planet to its competitors. The system boast 180 degree sound projection, meanings only one stick is required to power out the sound. Its lightweight and compact yet a grunty wee machine!



Bose is taking sound back to the roots. The system is set up behind or beside the musician. So the sound projection comes from the musician not from the left and right of a stage like it has been traditionally arranged. This adds effect to live performances - the sound is now coming from the musician.



More believable, more enjoyable, more intimate - the way live music should be!





Below is information form the Bose website:

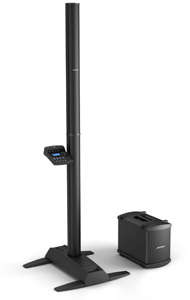

L1™ Model II Personalized Amplification System™

L1™ Model II Personalized Amplification System™

Link to the Bose website



The premium sound system combines the new L1™ Model II system and T1 ToneMatch™ audio engine. It gives you wide sound coverage, smooth tonal balance and a suite of powerful effects and tone-shaping tools. And it's packed with proprietary Bose® technologies designed to improve your amplified sound. The breakthrough Cylindrical Radiator® loudspeaker produces wide, uniform sound coverage—onstage and throughout an audience of up to several hundred—with little dropoff in volume and tone.



New with the Model II system: Articulated Array® speaker technology for greater tonal balance. The loudspeaker's 24 vertically mounted drivers are precisely angled to create clearer highs and more consistent tone in the room. Even people off to the sides enjoy well-balanced, detailed sound.



L1™ Speaker Technology - More than just a new type of speaker, L1™ portable line array systems represent a new approach to live sound.





What makes the L1™ portable line array so different?

It begins with the shape. Each L1™ system contains a column of many closely spaced drivers mounted in a tall, slim enclosure. This unusual design has profound effects on the sound.



Consistent sound levels

Because of its shape, the L1™ system projects sound waves that expand out and to the sides, but sends very little up and down. Sound spreads more evenly across the stage and into the audience, and the sound level drops off much more slowly than from a conventional speaker.

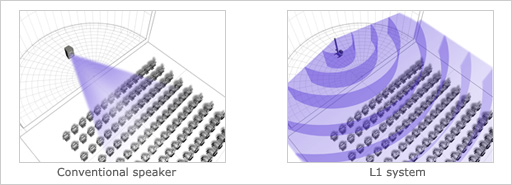

For example, imagine a conventional speaker and an L1 system placed side by side, set to produce the same sound level at a distance of one meter. At 10 meters away, the conventional source already has 10 times less sound intensity than the L1 system.

Sound levels stay so consistent throughout the venue, there's no need for separate monitor and PA speaker systems—and the L1™ system provides sound for both stage and audience. You have complete control over your sound, and you no longer have to wonder what your audience is hearing.


Smooth, uniform sound coverage

L1™ systems spread the sound at nearly 180 degrees, so tone quality stays smooth and even from side to side. The L1™ Model II system takes this uniform coverage even further with proprietary Bose® Articulated Array® speaker technology. Individual drivers in the line array are angled slightly to the sides in an alternating pattern to help deliver our smoothest, most uniform coverage. Even people off to the sides can enjoy crisp, detailed sound.

Less reverb

L1™ systems also produce much less reverberation than a typical sound system. Conventional speakers direct a lot of sound energy up towards the ceiling, where it gets reflected back down as reverb. Monitor wedges, usually angled towards the back wall, add to the problem. L1™ systems confine most of their sound energy in a wide, flat wedge of sound, projecting very little to the upper walls and ceiling. Sound remains clear and detailed, even in the back of the room.

Sound from an L1™ system is so consistent throughout the venue, you and your audience can enjoy full, detailed, tonally balanced sound. Whether you're at the front of the stage or the back of the house, in front of the speaker or off to the side.







Dimensions / Weight

L1™ Model II Cylindrical Radiator® loudspeaker top:
1.1m H x 9.0cm W x 10.5cm D ( 43 1/2" H x 3 1/2" W x 4" D )
7.4 kg (16.3 lbs)
L1™ Model II Cylindrical Radiator® loudspeaker bottom:
1.1 m H x 9.0 cm W x 10.5 cm D (43 1/2" H x 3 1/2" W x 4" D)
7.9 kg (17.4 lbs)
L1™ Model II power stand:
12.8 cm H x 26.2 cm W x 69.2 cm D (5" H x 10" W x 27"D)
10.7 kg (23.7 lbs)
B1 Bass module:
38.0cm H x 26.0cm W x 45.0cm D (15" H x 10 1/4" W x 17 3/4" D)
11.4 kg (25.1 lbs)
T1 ToneMatch™ audio engine:
6.76cm H x 16.6cm W x 20.9cm D (2 2/3" H x 6 1/2" W x 8 1/4" D )
1.0 kg (2.1 lbs)



Electrical

AC power rating:
220-240V 50Hz 500W (Australia)

Power stand inputs/outputs

ToneMatch port for T1™ ToneMatch audio engine:
1/4" analog input
1/4" bass line output
Neutrik NL4 bass module out

Information correct as at time of last page update.
To confirm product information or dimensions, please contact Bose.











B1 Bass Module

B1 Bass Module

This compact, powerful bass enclosure delivers the depth and impact of such instruments as bass guitars, drums, and low voices.

Low-pitched wind or string instruments, guitars and keyboards can also benefit from the additional low-end output the B1 provides.

Includes cable to connect module to power stand, professional padded gig bag and slip cover.



Dimensions:
38.0 cm x 26.0 cm x 45.0 cm
(15"H x 10 1/4"W x 17 3/4"D)

Weight:
11.4kg (25.1lbs)

Information correct as at time of last page update.
To confirm product information or dimensions, please contact Bose.











T1 ToneMatch™ Audio Engine

T1 ToneMatch™ Audio Engine



Power to shape your true sound

The new ToneMatch audio engine is designed to enrich the sound of musicians using any L1™ system. Its powerful features and tone-shaping tools quickly bring you closer to the true sound of your voice and instruments.



Better audio tools—only from Bose

This versatile audio engine helps you sound your best in live performances. It expands the input capacity of your L1™ system and gives you instant access to a host of proprietary EQ presets, standard effects and processors. Key features include:

  • Library of customized ToneMatch presets

  • Intelligent zEQ tone controls

  • Suite of reverb's, effects and dynamics processing

  • Storable scenes

  • Large backlit display

  • Chromatic tuner

  • Three mic/line inputs/outputs

  • Two line inputs (L/R)

  • USB port



Hundreds of sonic refinements—instantly

The ToneMatch™ audio engine puts our largest library of customized presets at your command. These presets instantly adjust your system to match the intended natural sound of popular instruments and microphones. So you reproduce factory-specified tonal balance—precisely and at the touch of a button.

Different presets can be independently assigned to the engine's four channels. For example, select Audix® OM5 mic presets for channels 1 and 2, Taylor® guitar for channel 3 and Lakland® bass for channel 4—all at the same time.

Our engineers continually work with manufacturers to expand the ToneMatch™ preset library. Updates are available to you free, with easy downloading via the engine's USB port.

Intelligent equalization: zEQ

Fine tune your sound with greater accuracy. Bose® intelligent zEQ redefines low, mid and high ranges for each ToneMatch preset. When you need to cut or boost specific frequency ranges for different instruments and mics, zEQ gives you the power.

Suite of effects and dynamics processing

Globally assign one of five different reverbs to each mic/line channel. You can also choose from three delay types, ten additional effects, and seven dynamics processors—and assign them independently to each channel.



Custom scenes

Store your customized settings for specific gigs with the "scenes" feature. The engine comes with five predefined Bose scenes and ten you can define. Fast, one-touch scene recall helps you make quick work of repeat setups.



Easy connections

Simply link the engine to an L1™ Model II system via the included digital cable—and rev it up. A sleek bracket is also included to attach the engine to the loudspeaker. For easy connection to a Model I system, use an analog cable and a T1 power supply.





Integrated ToneMatch™ and audio technologies


Powerful, multichannel ToneMatch™ audio engine designed for use with L1™ Model I and Model II systems. Contains our largest library of ToneMatch instrument and microphone presets, proprietary zEQ and a complete suite of studio-class effects and sound processors.

ToneMatch™ presets
Proprietary presets optimize L1 system to match intended natural sound of specific instruments and vocal mics. Presets are organized into quick-access banks and can be independently assigned to each channel. Free ongoing updates via USB connection between your computer and ToneMatch audio engine. See list of current presets.

zEQ
Proprietary zEQ automatically adjusts the range of tone controls to match your voice or instrument, making it easier to fine tune your sound. Conventional mixers may have fixed EQ ranges that don't accurately affect desired frequencies when adjusted. But zEQ appropriately redefines low, mid and high frequency ranges of specified sources.

ParaEQ
Single-band parametric equaliser centre's on frequency you specify for each independent channel. Valuable tool for reshaping problematic frequencies in certain venues.

Reverb's
Select from five reverb types: small, medium, large, plate and cavern. Quickly assign global reverb type to desired channels and control individual channel's decay time, brightness and mix level.

Delays
Choose from analog, digital or tape delay. Independently assign different delay settings for desired channels—with control over feedback time and mix level for each channel. For example, you can select tape delay for your vocal on channel 1 and analog delay for your guitar on channel 2.

Modulation effects
Independently assign 10 different modulation effects: three chorus types, two flange types, four phaser types and one vintage tremolo effect. Gives you discrete control over designated parameters for each channel.

Dynamics processing
Apply and adjust dynamic sound processing to independent channels. Choose from three different compression types, plus a limiter, de-esser, kick gate and noise gate.

Scenes
Store, recall and edit performance "scenes"—snapshots of key ToneMatch audio engine settings at any given time. Includes five predefined Bose® scenes, five My scenes and five Shared scenes you can give to other L1 owners. Scenes help simplify and reduce setup time when you're using an L1™ system repeatedly in different venues.

Chromatic tuner
Tune instruments easily.

Large backlit display
Features intuitive layout and easy-to-read text for modes and settings.

Rotary encoder
Turn for quick access to engine modes, effects and parameters, including ToneMatch™ presets, zEQ, ParaEQ, reverbs, delays, modulators, dynamics processing, scenes and tuner. Features clean, circular layout.

Aux mode (channels 1 – 3)
Send channels' dry, pre-fader or post-fader audio to aux output for connection to additional L1 systems or recording devices. Independent level controls for optimal signal output.

Channel volume, mute and FX mute (1 – 4/5)
Adjust volume and mute individual channels. Use FX mute to silence all effects on selected channels.

Master volume
Adjust overall level of master output.

Phantom power
Apply +48V power to input channels 1 – 3 to drive specific microphones.

ToneMatch™ cable
Single digital cable provides audio and power to ToneMatch™ audio engine from power stand.

Mounting bar and carriage
Securely attach ToneMatch™ audio engine to L1™ Model I or Model II loudspeaker with this sleek, custom support.

Protective cover and carrying case
Protect controls and case when storing and transporting.

Main Inputs/Outputs

Mic/line inputs (1 – 3)
Analog channels with combination connectors accepting balanced XLR or unbalanced 1/4" TRS audio cables.

Line inputs (4/5, L/R)
Analog channels for stereo connections to keyboards, mixers and computers. Inputs accept balanced 1/4" TRS cable. Edit control affects both channels.

Trim controls and signal/clip LEDs (1 – 4/5)
Adjust levels of input signals. Green/yellow/red LEDs show signal status and help you set gain levels properly.

Preamp outputs (1 – 3)
For connecting channels' dry output signals to recording gear or other amplifiers via balanced 1/4" TRS cable.

Aux output

Use with aux mode to create independent submix of channels 1 – 4/5 to route to other amplifiers or recording gear.

Master output
Analog output for connecting to additional L1™ systems, amplifiers or recording gear via balanced 1/4" TRS cable. Select from pre- or post-master volume settings.

ToneMatch™ port
Connect digital output of engine to L1 Model II power stand via included ToneMatch digital cable. Single cable also supplies power to engine.

USB port
Update ToneMatch audio engine and back up scenes via USB connection to your computer.

Dimensions
6.76 cm H x 16.6 cm W x 20.9 cm D (2 2/3''H x 6 1/2''W x 8 1/4''D)

Weight
1.0 kg (2.1 lbs)

A/D conversion
24-bits

Sampling rate
48 kHz

PC requirements (for USB port)
Windows 2000, 2000 Pro, XP

Information correct as at time of last page update.
To confirm product information or dimensions, please contact Bose.
